Supported Model Formats

Melange supports two model formats for on-device deployment. Choose the format that best matches your training framework.

Supported Formats

Choosing a Format

• PyTorch users: Use PyTorch Exported Program (.pt2). Requires PyTorch >= 2.9.
• TensorFlow / Keras / scikit-learn users: Convert to ONNX format.

Input Requirements

Regardless of format, all models require:

1. NumPy input files (.npy): Sample inputs that define the expected tensor shapes and data types.
2. Fixed input shapes: NPU compilation hard-codes input shapes for maximum throughput. Even if your original model supports dynamic sizes, the Melange-compiled model will accept only the exact shape provided during upload.

Graph Constraints

Melange compiles your model into a static computation graph, which places constraints on the graph itself beyond just input shapes. Address these before exporting.

Fixed Shapes Throughout the Graph

Every tensor shape inside the graph — not only the inputs — must resolve to a constant at export time. If any intermediate operation produces a shape that depends on runtime values, compilation will fail.

Common sources of dynamic internal shapes:

• Data-dependent control flow (if / while conditioned on tensor values)
• Operations like nonzero, masked_select, or slicing with indices that aren't compile-time constants
• Variable-length sequences without padding

Refactor these into fixed-shape equivalents (for example, pad to a maximum length and apply a mask instead of gathering a dynamic subset) so that all shapes become constants during export.

No Complex Number Support

The Melange backend does not support complex dtypes (complex64, complex128). If your model uses complex tensors — for instance, FFT outputs — rewrite those portions to carry real and imaginary parts as separate float tensors.

For a complex tensor of shape (N,), use a float tensor of shape (N, 2) (or two tensors of shape (N,) for the real and imaginary parts) and implement complex arithmetic with real-valued operations.

Verifying Input Order and Shapes

Melange compiles your model into a static hardware graph. This means consistent input order and input shapes are mandatory for execution.

Why Order Matters

The internal computation graph expects data in specific slots (e.g., input_zero at index 0, input_one at index 1). If you swap them during upload or inference, the model will produce garbage results or crash.

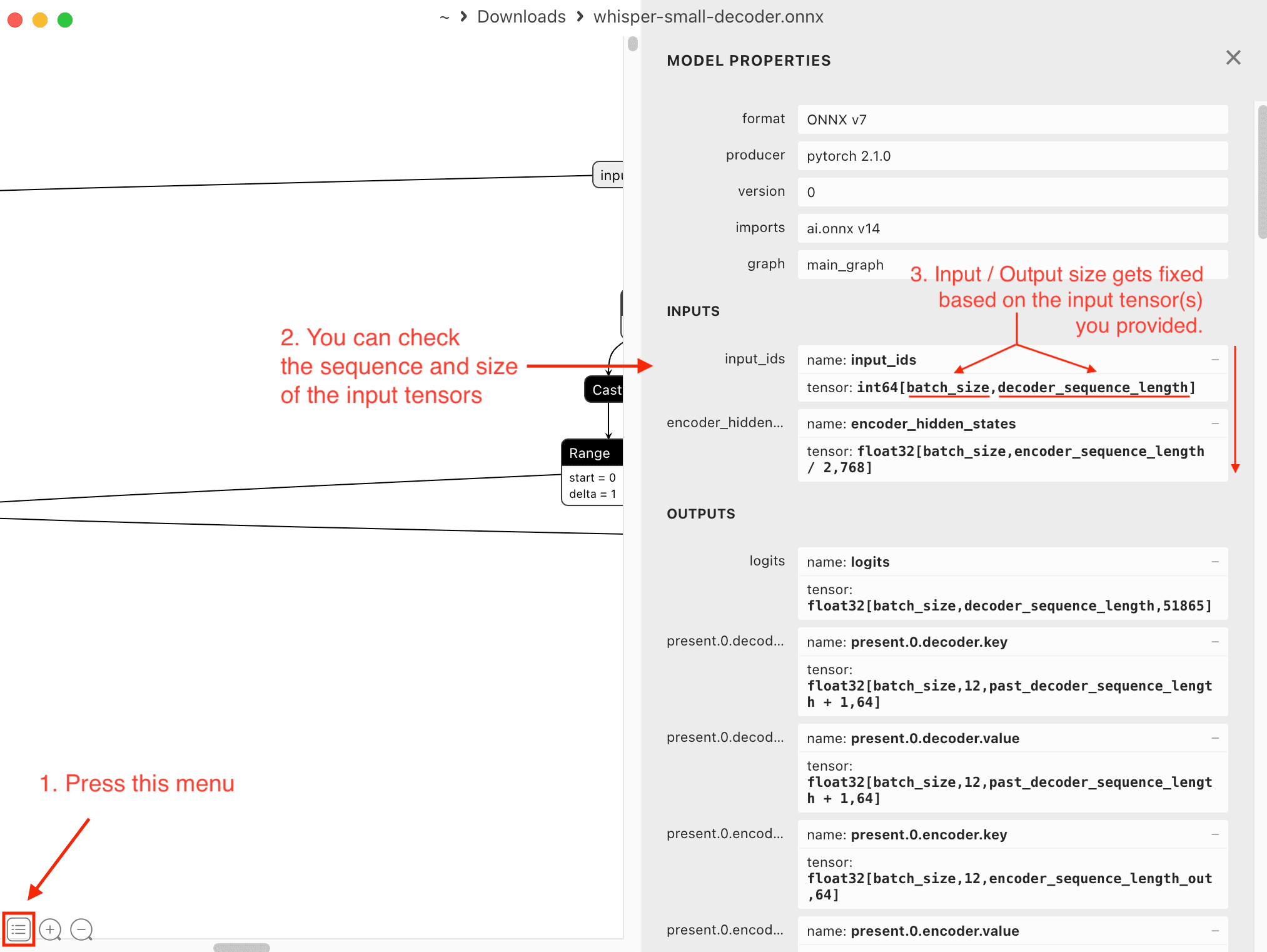

Inspecting with Netron

We recommend using Netron to visualize your model's input signature:

1. Open your model (.pt2 or .onnx) in Netron.
2. Locate the Input Nodes at the top of the graph.
3. Note the vertical order: the top-most input is Index 0, the next is Index 1, and so on.

---

Next Steps

• PyTorch Export: Export PyTorch models to .pt2
• ONNX Models: Convert TensorFlow, Keras, and scikit-learn models
• Pre-built Models: Use ready-to-run models from Dashboard or Hugging Face
